Purpose
CVD-108 security sensor is intended to provides reliable protection in outdoor environments and detects a human intruder passing the detection zone near fences, masts, gates or entryways.
Composition:
- transmitter – 1 pc.;
- receiver – 1 pc..
Incorporated in sealed plastic housing (with unique protection against the formation of condensation water) with mounting bracket for adjustment to round masts (Ø from 40 mm) by metal rings or to flat surfaces by screws. The mounting bracket ensures adjustable position of the sensor and can rotate it by ±20° in any direction.
Transmitting and receiving units are installed and connected on the opposite sides of the protected area. Unique synchronization technology does not require preliminary manual settings and automatically tunes receiver to operate with certain transmitter and guarantees no impact of neighboring sensors on each other.
Microwave CVD-108 sensor generates an electromagnetic field between transmitter and receiver, creating an invisible detection zone. When an intruder enters the detection zone, changes to the field are registered and an alarm occurs.
Unique signal processing technologies generate detection zone without affection of detection probability:
1) Alongside walls for access control;
2) Along the upper part of the fencing;
3) Along ground surface on open areas.

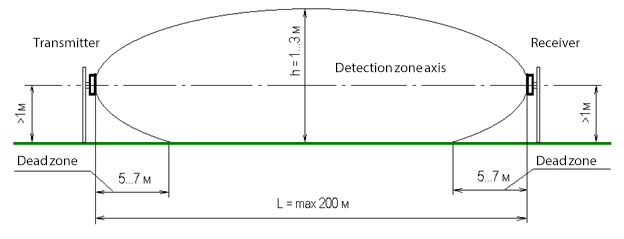

Detection zone has spheroid ellipsoid form with an axis corresponding with imaginary straight line connecting transmitter and receiver. Detection area is created over 5 to 200 meters. Detection width depends of the distance between transmitter and receiver and does not exceed 4 meters.
Application
CVD-108 security sensor is applied in integrated security system or as an independent intruder detector and ideal for installation very close to fencing with small exclusion zone, near traffic roads or railways.
